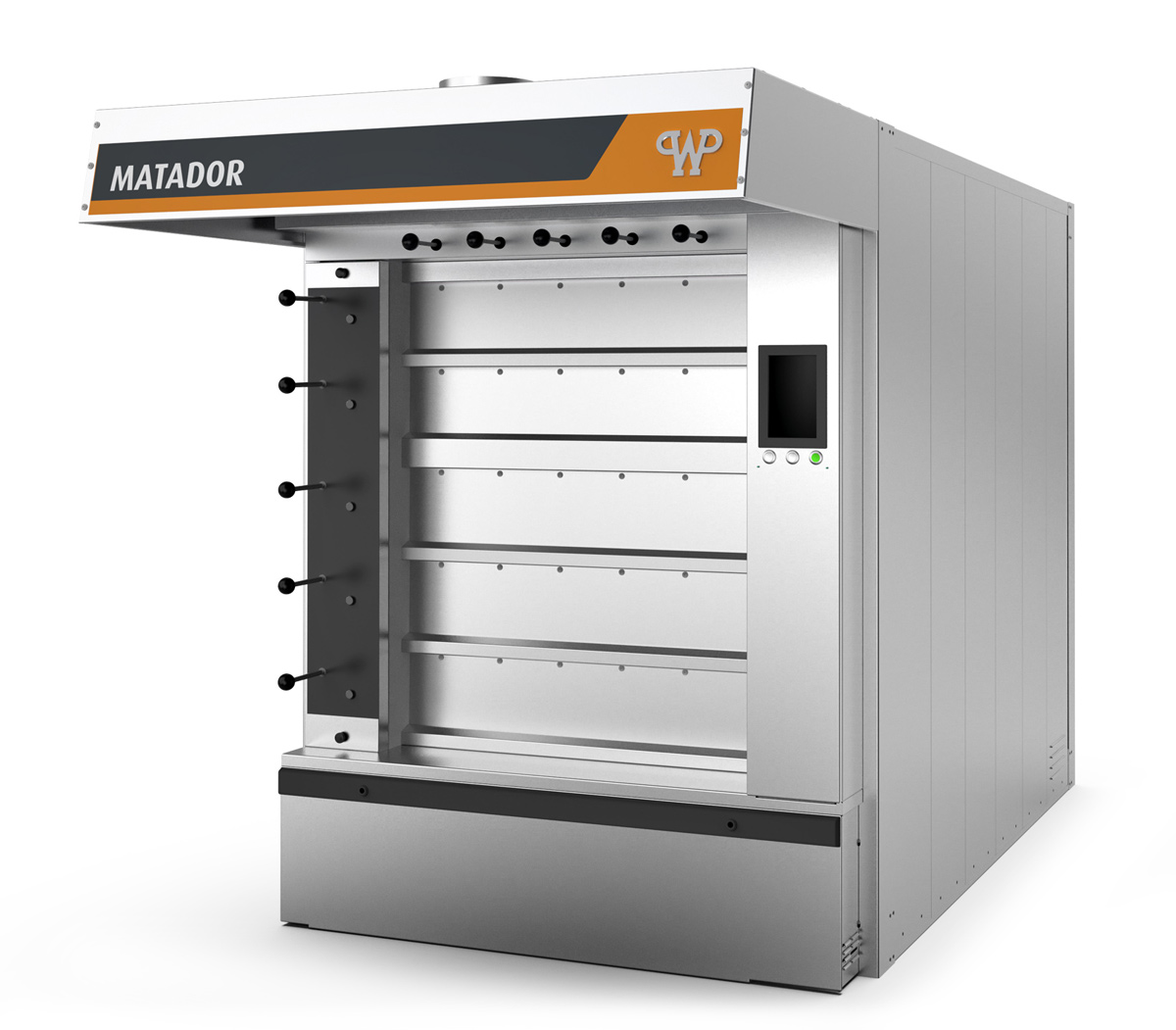

Multi-deck oven
MATADOR
MDV
![Multi-deck oven MATADOR MDV](/fileadmin/wpl/produktwelt/backen/matador-mdv/WP-MATADOR-MDV-Produktionsofen.jpg)
- High-quality special baking stones
- Oil or gas operation at choice
- Ideally suited for being equipped with semi or fully automatic automation systems
- Convertible with electric heating cartridge
Uniform baking results
repeatable at any time
The MATADOR® is a classic deck oven and can be equipped with baking areas from 8 to 43 m². It is built in the versions MD and MDV. Both versions have special baking stones and can convince with a particularly uniform baking result reproducible at all times.
![Proven MATADOR baking quality Evenly baked breads in deck oven MATADOR](/fileadmin/wpl/produktwelt/backen/matador/WP-MATADOR-konstante-Backergebnisse.jpg)
Proven quality
Due to the extremely long utilization period, the investment in a new MATADOR® is similar to an intergenerational contract from grandfather to grandson
![Energy-saving heating system ZYKLOTHERM Schematic illustration of circulating air in MATADOR deck oven with ZYKLOTHERM heating system](/fileadmin/wpl/produktwelt/backen/matador/WP-MATADOR-Heizsystem-Zyklotherm.jpg)
Energy-saving heating system ZYKLOTHERM®
Uniform baking process, perfect browning, crisp crusts and full flavor development
Simple operating control system WP NAVIGO 3
Get a compact grip on all the features with the innovative control system. It offers maximum ergonomics, assistance and economic operation.
![Simple operating control system WP NAVIGO 3 Display with software WP NAVIGO 3](/fileadmin/wpl/produktwelt/backen/matador/WP-MATADOR-Ofensteuerung-WP-NAVIGO-3.jpg)
![Batch-on-batch baking and and reaching a relative humidity of 75 % in less than one minute! Schematic illustration of the recirculation principle](/fileadmin/wpl/produktwelt/backen/matador/WP-MATADOR-Schuss-auf-Schuss.jpg)
Batch-on-batch baking
A relative humidity of 75 % is achieved in less than one minute. Ideal for excellent shine, juicy crump and crunchy crust.
Reduction of surface losses by WP ENERGY BLOCK
Its 30cm strong high-tech thermal layer ensures reduced surface loss by almost 11 %.
![Reduction of surface losses by WP ENERGY BLOCK Schematic illustration of the thermal layer insulation](/fileadmin/wpl/produktwelt/backen/matador/WP-MATADOR-Isolierung-WP-ENERGIE-BLOCK.jpg)
![Connect ovens via WP BakeryControl Scheme of WP BakeryControl networking](/fileadmin/wpl/produktwelt/backen/matador/WP-MATADOR-Denkzentrale-WP-BakeryControl.jpg)
WP BakeryControl - The central software for your bakery
The quality of the product benefits from WP BakeryControl: better control of the baking sequence in relation to capacity utilization, extended product shelf life, less scrap, and consistent quality thanks to stored recipes and automated machine control.
- The well-proven MATADOR® quality:
- Classic deck oven in stainless steel design
- Perfectly accessible baking area – from 8 to 43 m²
- Unique ZYKLOTHERM® heating system for perfect heat transfer
- Outstanding, exemplary temperature flexibility
- Excellent vapor guide with rich steam
- High-quality special baking stones as standard
- Highly effective 30 cm strong high-tech insulation
- Ergonomic control via extra large display
- Direct and also time-delayed integration of semi and fully automatic loading systems
- Simple operation through
WP NAVIGO 3:- It offers maximum ergonomics, assistance and economic operation
- Focus on only one control panel
- Particularly large screen
- Fully automatic vapor injection
- Each deck oven with its own vapor button
- Display with glass touch surface
- WP ASSISTANT: Easy-to-understand video clips to assist the personnel in front of the oven with cleaning and maintenance
- Simple, logical programming
- Up to 250 recipes can be saved
- Stores every baking process without any gaps
- Identical operating system for all oven models
- WP ISOTHERMIC BAKING: The automatic quantity control of baking
Baking area:
12 – 43.2 m²
Heater:
Oil / Gas / Electric
All oil and gas-fired ovens in the MATADOR series and MATADOR MDV series can be retrofitted with a heating cartridge and with an electric heating cartridge
be heated with electricity.
Ovens:
4 to 10
Max. number of draw-plate
decks standard
2 or 3
Max. number of draw-plate
decks Combitherm
2 or 3
Loading, per oven 1 kg bread,
unmoulded
24 to 54 loaves
Total load 1 kg bread,
unmoulded
96 to 540 loaves
(further technical information to be
found in datasheet and brochure)
Options
- Electromechnical control
- WP NAVIGO 3
- One control panel per deck oven
- Automatic steam slide valve
- Remote indication per oven group - Pull-out ovens
- Combitherm
- Stainless steel side wall and rear wall coating
- WP BakeryControl
- WP INTELLIGENT ENERGY CONTROL
For diverse bakery products
The results of baking with MATADOR® are guaranteed uniform baking products with crisp crusts and full flavor development.
![](/fileadmin/_processed_/a/d/csm_WP-Schnittbroetchen_194e03ff9c.jpg)
Slit rolls
![](/fileadmin/_processed_/7/d/csm_WP-Kaiserbroetchen_01_8896d27bd5.jpg)
Kaiser rolls
![](/fileadmin/_processed_/1/0/csm_WP-eckiges-Broetchen_bac3260dc6.jpg)
Artisan square rolls
![](/fileadmin/_processed_/9/e/csm_WP-Adria-Brot_e24e7317e4.jpg)
Adria Brot
![](/fileadmin/_processed_/3/4/csm_WP-Baguette-Divina_7797ed750c.jpg)
Baguette Divina
![](/fileadmin/_processed_/b/5/csm_WP-Baguette_e4b4c4a4bd.jpg)
Baguette
![](/fileadmin/_processed_/f/3/csm_WP-Bauernbrot_63972a5dc5.jpg)
Bauernbrot
![](/fileadmin/_processed_/0/0/csm_WP-Brioche_cf95e344e0.jpg)
Brioche
![](/fileadmin/_processed_/9/c/csm_WP-Finnenbrot_115b8606a4.jpg)
Finnenbrot
![](/fileadmin/_processed_/f/c/csm_WP-Fladenbrot-tuerke_20dd59232b.jpg)
Fladenbrot
![](/fileadmin/_processed_/7/2/csm_WP-Grosser-Kassler_fc6cef1a2d.jpg)
Grosser Kassler
![](/fileadmin/_processed_/a/8/csm_WP-holzofenbrot_01_5b1d6a865b.jpg)
Holzofenbrot
![](/fileadmin/_processed_/8/e/csm_WP-Roggenriese_15ca37d207.jpg)
Roggenriese
![](/fileadmin/_processed_/1/f/csm_WP-Weisbrod-rund_944bf784f6.jpg)
Weißbrot rund
![](/fileadmin/_processed_/3/d/csm_WP-Weizenriese_7fa3ad1d86.jpg)
Weizenriese
