Roll baking system
MINIROLL
high capacity in the smallest space
The compact system for small bakery items in perfect craftsmanship quality. The large weight range of the integrated MULTIMATIC dough divider allows for great product variety.
The all-rounder
in the bakehouse
This compact system produces long-rolled rolls, smooth round rolls (also cylindrical), small baguettes, but also buns for hamburgers or hot dogs with a dough weight of 35 g to 150 g.
The interchangeable pressure boards and the driven top belt ensure variety. And what’s more: In green mode, up to 9,000 pieces can be produced per hour. Quite maxi, our MINIROLL!
A gentle dough dividing and molding process has a decisive effect on the quality of your baked goods. For this reason, the MULTIMATIC head machine, which is gentle on the dough, accurate in weight and flexible, has been integrated into the compact MINIROLL form baking system.
Interchangeable pressure boards and the driven top belt
ensure variety of bakery items in the compact roll baking system
Equipment
- 3- to 6-row system of 600 mm or 800 mm width
- Weight range from 35 g to 150 g
- Manual pressure adjustment
- Automatic weight adjustment
- Hanger drying
- Climate control in the proofing cabinet
- Intense degermination station
- Variable depositing unit for proofing boards of different Euro sizes
- Depositing unit with end position change
- Counter
- Array of pressure boards for product maximum variety
- Bypass belt for green mode
- Integrated chamber drum shelf for maximum 3 chamber drums
Extended weight range:
The integrated MULTIMATIC C or MULTIMATIC PRO head machine
Most gentle
dough handling
With gentle drum molding
system, adjustable molding belt,
and variable molding intensity
High hopper volume
Holding capacity 40 kg
Photocell technology
Easy and safe operation of the system
Simple product change
With automatic weight adjustment
Extended weight range
Thanks to double piston system
Hygiene
Dough-handling machine
parts are separated from
the drive mechanism, and
thus easy to clean
Compact MINIROLL roll baking system with integrated MULTIMATIC drum round molder
A gentle dough dividing and molding process has a decisive effect on the quality of your end products. For this reason, the both gentle on the dough and flexible MULTIMATIC C resp. MULTIMATIC PRO head machine has been integrated into the compact MINIROLL form baking system.
WP roll baking systems – Technology that inspires!
Advanced working processes for optimum quality and content staff
WP has been a partner to the baking trade for generations. Our expertise and the exchange with the baking trade worldwide have helped our machines mature and become what they are today. Working with them is pure joy.
Simple operation
- Intuitive Siemens touch control
- All functional areas are
clearly visible - Weight and product change
with a few simple steps - High level of operational
safety using additional
signal lights
Easy to clean
- Easy, time-saving cleaning
- Free access to all functional areas
- Dough-handling parts are
separated from the drive mechanism - Ample ground clearance
- Majority of dough-handling
parts suitable for machine cleaning
Digital machine file
- Direct access to machine
and system information - Online spare parts, wear
parts and service orders
Motivated employees
- Ergonomic workstations reduce
physical strain to a minimum - Relief from monotonous routine tasks
- Improve working environment
WP DIGITAL PORTAL: Register now!
Safeguarding process quality, boosting efficiency, cutting costs. Take the first step, sign up to the WP DIGITAL PORTAL for free, and register your ovens and machines. The WP DIGITAL PORTAL grants access to machine and system information as well as service functionalities in the web browser. The future is digital!
Performance features
pieces/hour
max. 9,000 pieces/hour
3-row: 1,800 (4,500*)
4-row: 2,400 (6,000*)
5-row: 3,000 (7,500*)
6-row: 3,600 (9,000*)
* Capacity in green mode
(The capacity is depending
on dough and weight)
weight range (g)
35 g to 85 g,
35 g to 150 g optional
rows
Dough molder
- Working width 600 mm and 800 mm
- 3- to 6-row

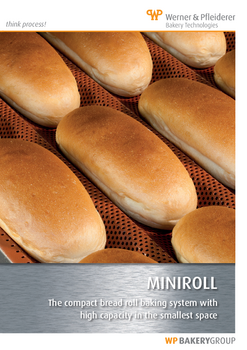

The compact bread roll baking system with high capacity in the smallest space
The interchangeable pressure boards and the driven top belt ensure variety.
Easy to operate, freely programmable,
perfect visibility at all time
The Siemens touch control is easy to operate, freely programmable and clearly visible at all time.
Large touch display
Easy operation
Master control
password protected
Depositing unit
freely programmable
Remote maintenance
Networking and efficient remote diagnosis as well as remote maintenance possible. Data backup to flash card or USB flash drive.
User-friendly, production-reliable, always at your fingertip
WP machines and systems come equipped with a standardized control system. Identical menu navigation and uniform use of pictograms, colors and processes greatly simplifies operation and prevents errors. As an option, we offer a powerful and safe remote diagnosis and maintenance feature.
Hygienic safety
A clean affair!
Hygiene starts with the design of machine and system. Easy to clean or removable components, smart solutions and innovative materials ensure a maximum level of hygiene!
Hygienic safety
Shortest cleaning time
Maximum value retention
- Guide plates, casing, climate modules, long rolling and stamping tools, flour duster and exchangeable modules are easy to mount and remove
- All dough-handling parts and all plastic components in hygienic design version
- High ground clearance to facilitate cleaning
- Window on both sides can be opened and removed
Most diverse product range in best baking quality
To keep your product range attractive at all times.
Smooth round roll
Double roll
Raisin roll
Long rolled roll
Hamburger bun
Mini baguette
Ball donut
